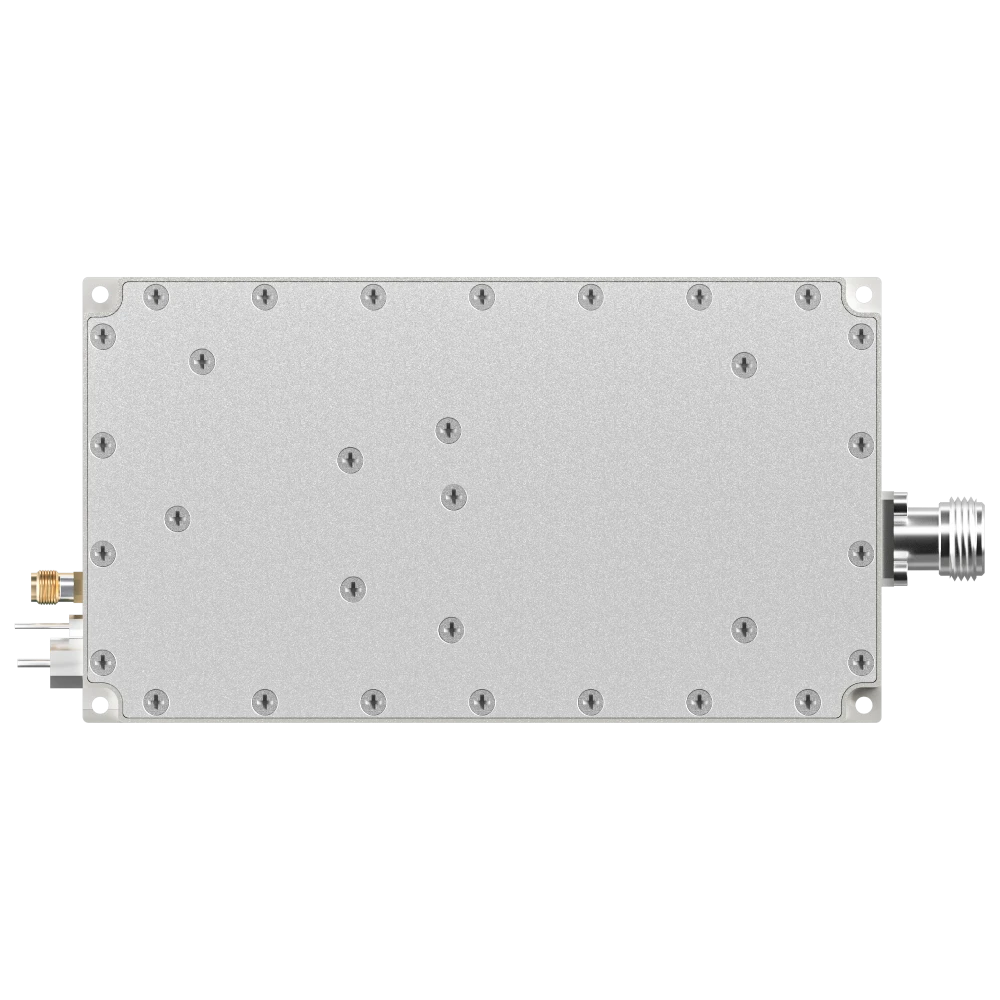

2GHZ – 6GHz 100W Power Amplifier Module LQ-Y5

The 2 GHz~6 GHz 100W Power Amplifier  Module LQ-Y5 is a high-performance RF amplifier. It is designed specifically for counter-drone systems and electronic warfare (EW) applications. This compact module covers a wide frequency range from 2000MHz to 6000MHz. It is highly effective at jamming drone communications, GPS signals, and control systems.

The LQ-Y5 power amplifier module consists of a 4-stage amplifier circuit. Based on this hardware structure, the power-on/power-off sequence requirements are as follows:

Power-on sequence: 28V power supply → Enable on → Input signal;

Power-off sequence: Input signal off → Enable off → 28 V power off.

Key Features:

• Wide Frequency Range (2 GHz~6 GHz): This module covers a broad frequency spectrum, ensuring versatility in various counter-UAV and EW operations.
• 100 W Output Power: Delivering a typical output of 100 W, the LQ-Y5 provides strong signal amplification to disrupt unauthorized UAV operations.
• Compact and Robust Design: With dimensions of 147 mm × 82 mm × 22.5 mm, this module offers a compact form factor that doesn’t compromise on performance or reliability.
• Stable and Efficient Power Amplification: The LQ-Y5 ensures efficient and stable performance, even under demanding operational conditions.
• Operating Voltage: Designed to operate at 28 V, with a typical operating current of 13 A, the module is optimized for high-power output while maintaining energy efficiency.
• Impedance: The module operates with a 50 Ω impedance, making it compatible with standard RF systems.

Why Choose the 2GHz~6GHz 100W Power Amplifier Module LQ-Y5?

The LQ-Y5 is ideal for demanding environments where high-power, stable RF signal amplification is essential. Its robust design, combined with wideband frequency coverage and efficient power handling, makes it the ideal choice for military, defense, and security applications. Whether you’re looking to enhance your electronic warfare capabilities or develop more effective counter-drone strategies, the 2 GHz~6 GHz 100 W Power Amplifier Module LQ-Y5 delivers the performance and reliability to ensure mission success.

Applications

This power amplifier module is suitable for the following facility scenarios:

• Counter-Drone Systems
• Electronic Warfare (EW)
• Signal Jamming
• UAV Disruption
