Detection Series/

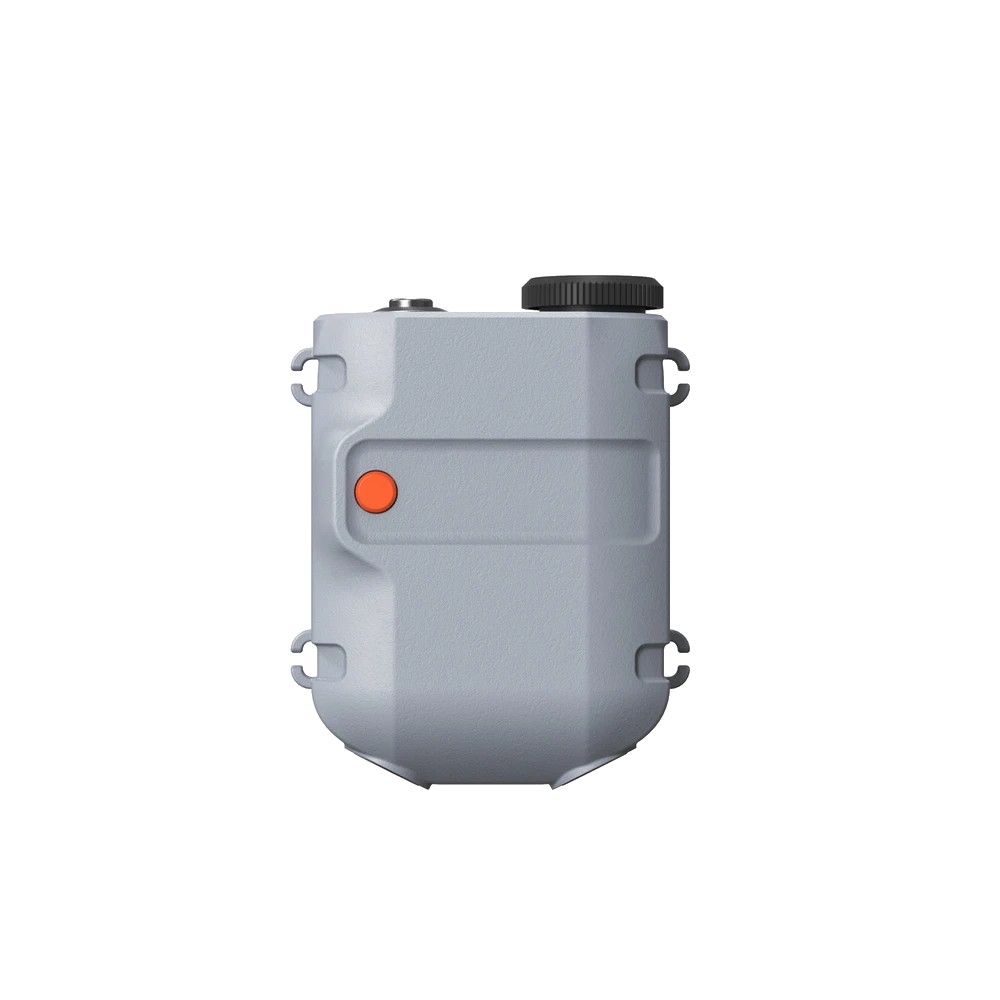

Head-Mounted Laser Warning Device

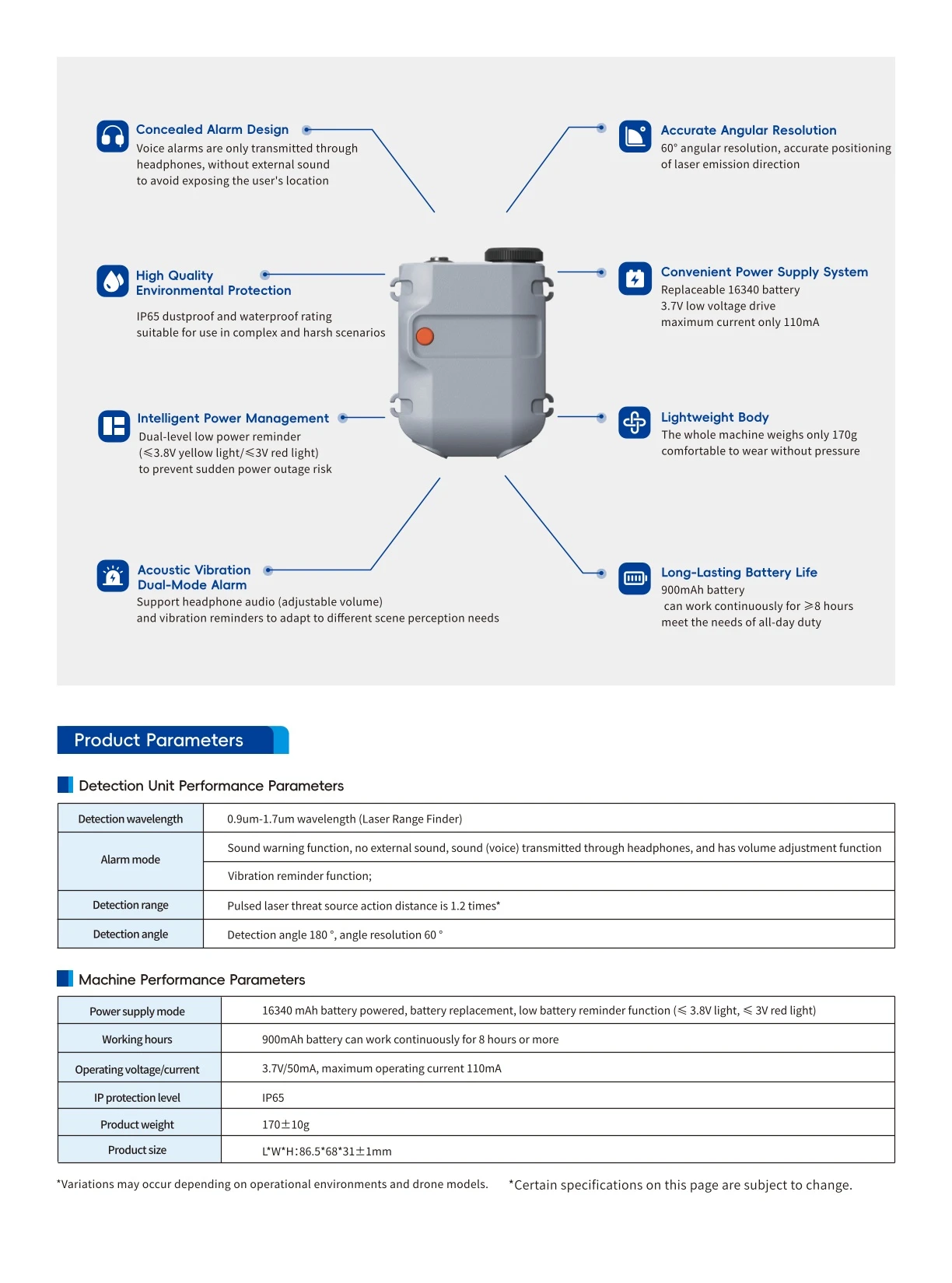

Machine Performance Parameters

Spectral detection working range:  0.9 um-1.7 um wavelength (Laser detection and warning)

Alarm mode:  1. Sound warning function, no external sound, sound (voice) transmitted through headphones, and has volume adjustment function  2. Vibration reminder function

Detection range:  Pulsed laser threat source action distance is 1.2 times

Detection angle:  Detection angle 180 °, angle resolution 60 °

Product application fields: Soldier personal protective equipment, red-blue confrontation



Machine Performance Parameters

Power supply mode:  16340 mAh battery powered, battery replacement, low battery reminder function (≤ 3.8 V light, ≤ 3 V red light)

Working hours:  900 mAh battery can work continuously for 8 hours or more

Operating voltage/current:  3.7 V/50 mA, maximum operating current 110 mA

IP protection level:  IP 65

Product weight:  170±10 g

Product size:  L*W*H:86.5*68*31 ± 1 mm



Note: Variations may occur depending on operational environments and drone models. Certain specifications on this page are subject to change.

  • Product Details
  • Feature

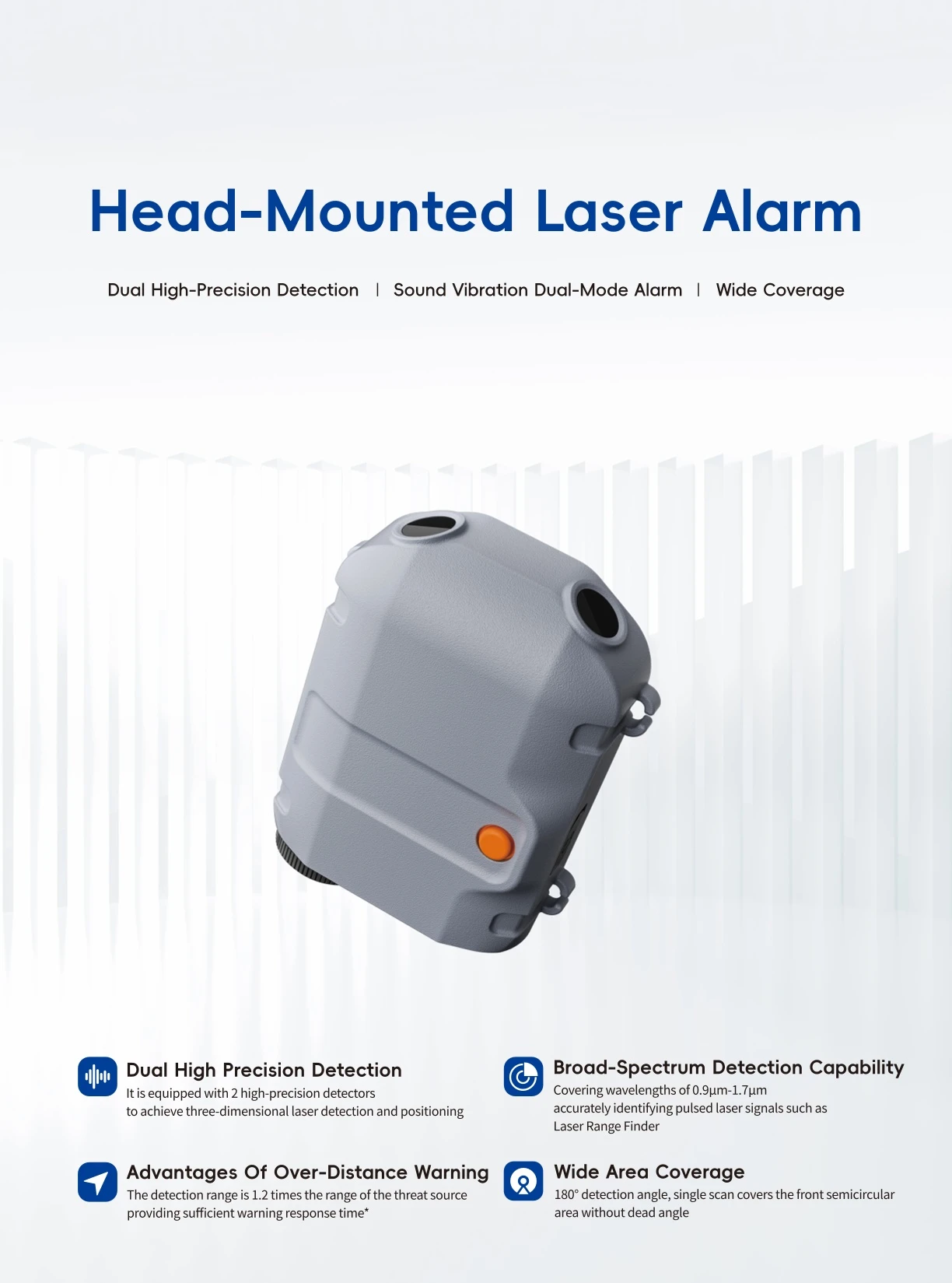

Head-Mounted Laser Warning Device — Your Ultimate Protection Against Laser Threats

The Head-Mounted Laser Warning Device is a cutting-edge early-warning system, used in conjunction with a helmet. It is designed to enhance situational awareness in environments exposed to laser threats. Whether you are in tactical operations, real-world scenarios, or simulation training like CSGO competitions, this device ensures you stay one step ahead of potential laser attacks.

Key Features:

  • Dual High-Precision Laser Detectors
    Equipped with dual detectors, the device offers fast and accurate identification of laser signals, ensuring real-time threat detection. You’ll know instantly when you’re being targeted, allowing for swift countermeasures.

  • Wide-Spectrum Detection (0.9 μm to 1.7 μm)
    With its ability to detect a wide range of pulsed laser emissions, including those from Laser Range Finders, the device offers high reliability in a variety of environments. Whether you’re navigating dense urban areas or open fields, you’ll be ready for any laser-based threat.

  • Extended Detection Range
    The device’s detection capability extends to 1.2 times the range of the threat source, giving you additional time to react and maintain a tactical advantage. This is especially critical in high-stakes missions where seconds can make all the difference.

  • 180° Continuous Monitoring
    The system offers full, uninterrupted surveillance with a 180° detection angle, ensuring comprehensive coverage of the forward semicircle. We ensure your safety by covering your entire line of sight without blind spots.

  • Perfect for Real-Life and Simulated Environments
    Ideal for real-person CSGO competitions and simulation training, this device provides players and professionals with advanced situational awareness and enhanced response capabilities. Whether in training or actual operations, you’ll always be ready.

Applicable Scenarios

  • Military and Tactical Operations
  • Drone Countermeasures Operations
  • Civil Aviation Safety
  • Simulation Training and Esports
  • Law Enforcement and Public Safety
  • Border Patrols and Counterterrorism Operations

The Head-Mounted Laser Alarm system is engineered to enhance user safety in industrial and high-risk environments by providing immediate, hands-free alerts upon detecting a laser beam or critical hazard in the line of sight. Featuring a lightweight, ergonomic design, the core Head-Mounted Laser Alarm function utilizes precise laser detection sensors integrated into a comfortable headset for instant, audible, and visual threat notification.
