Jamming Series/

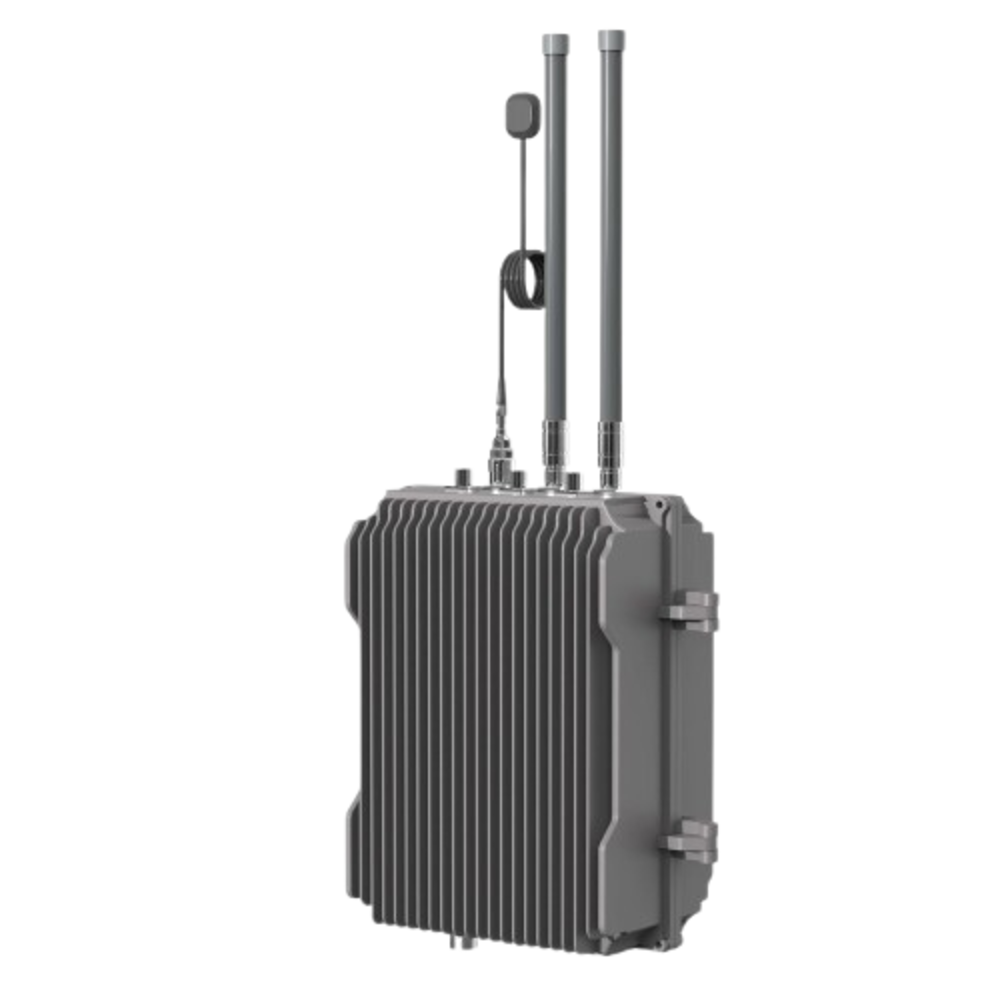

UAV-Navigation Deception Device

Overall Performance Parameters

Supported frequency bands:  Standard: GPS L1, GLONASS L1;  Customizable: BDS B1/B2, Galileo E1/E5a, GPS L2/L5

Signal transmission power:  ≤10 dBm

Operating range:  500 m-1000 m* (customizable)

Strategy support:  Defense mode/drive-away mode

Working ability:  24-hour autonomous operation



Machine Performance Parameters

Installation method:  Wall mounting/pole mounting
Overall power consumption:  ≤40 W
Operating voltage:  220 V
Communication interface:  RJ 45*1
Protection rating:  IP 65
Operating temperature:  -40°C ~ +70°C
Product weight:  ≤12 kg
Product dimensions:  L*W*H: 385 mm×310 mm×204 mm (excluding antenna, with RF connector)



Note: Variations may occur depending on operational environments and drone models. Certain specifications on this page are subject to change.

  • Product Details
  • Feature

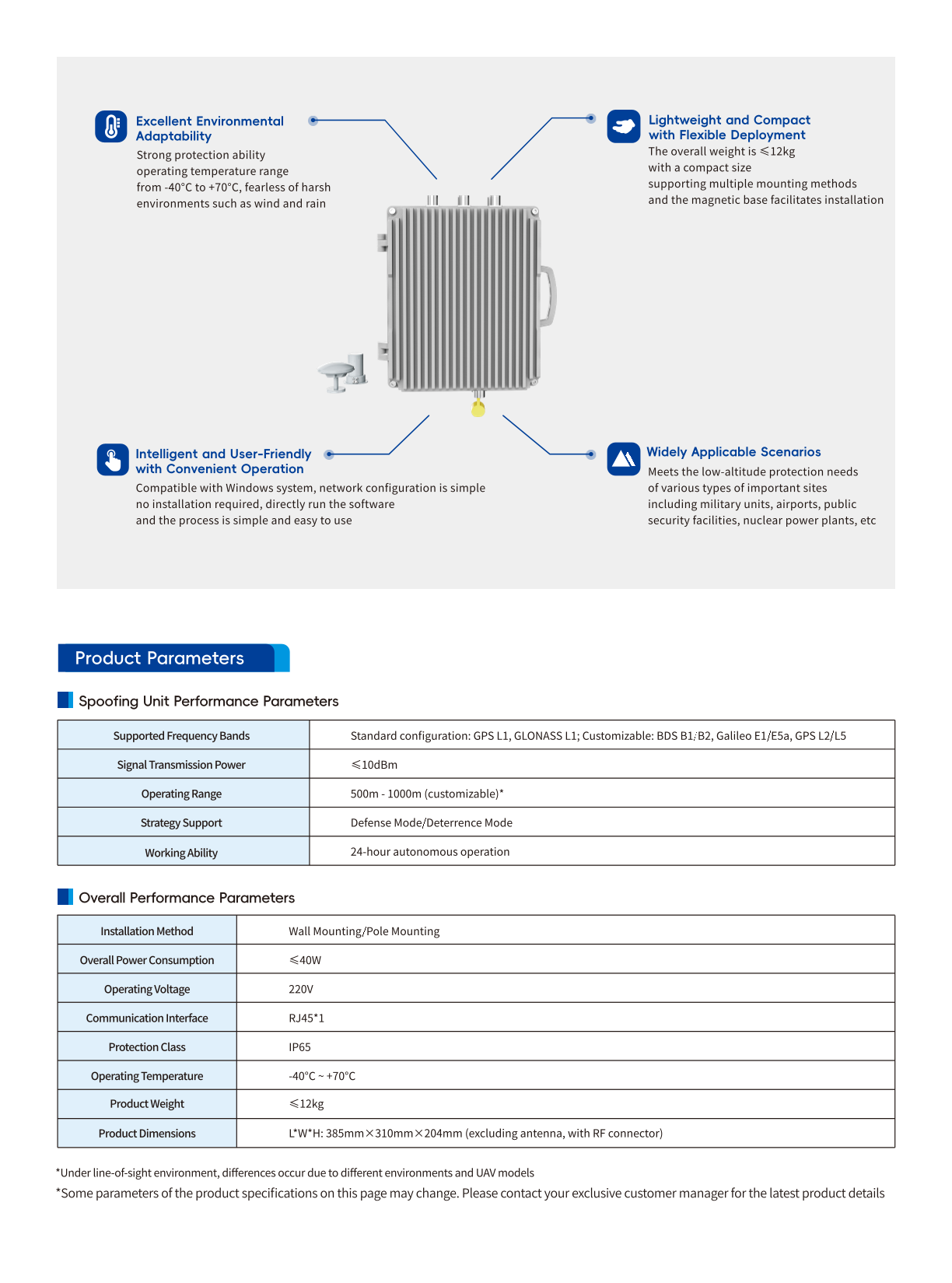

The UAV navigation deception device is a dedicated UAV management product for low-altitude security. By jamming and deceiving UAV navigation signals, it effectively prevents unauthorized UAV intrusion and safeguards key airspace. This product possesses multi-band jamming capabilities, supports mainstream domestic and international satellite navigation systems, and can be customized to specific frequency bands to flexibly respond to different threats. Its dual-mode deception strategy allows users to choose between defense or deterrence modes based on actual needs, with an effective range of 500 to 1000 meters, and can be expanded as needed to meet various protection requirements.

The device maintains stable performance in complex environments, can operate continuously under harsh temperature conditions, adapts to severe weather such as wind and rain, and has 24-hour uninterrupted autonomous operation capability, making it competent for high-intensity security tasks. Its operation is simple, compatible with conventional operating systems, requiring no complex installation, and can be quickly configured via network, significantly lowering the barrier to entry. The entire unit is lightweight and compact, weighing less than 12 kilograms, supports multiple installation methods, and offers flexible and convenient deployment, quickly responding to various temporary or fixed deployment needs.

UAV-navigation deception device is designed to disrupt and mislead drone navigation systems for enhanced security.

Advanced UAV-navigation deception technology that protects airspace by jamming and spoofing drone GPS signals.
