Detection Series/

Low-Altitude Sensing Base Station

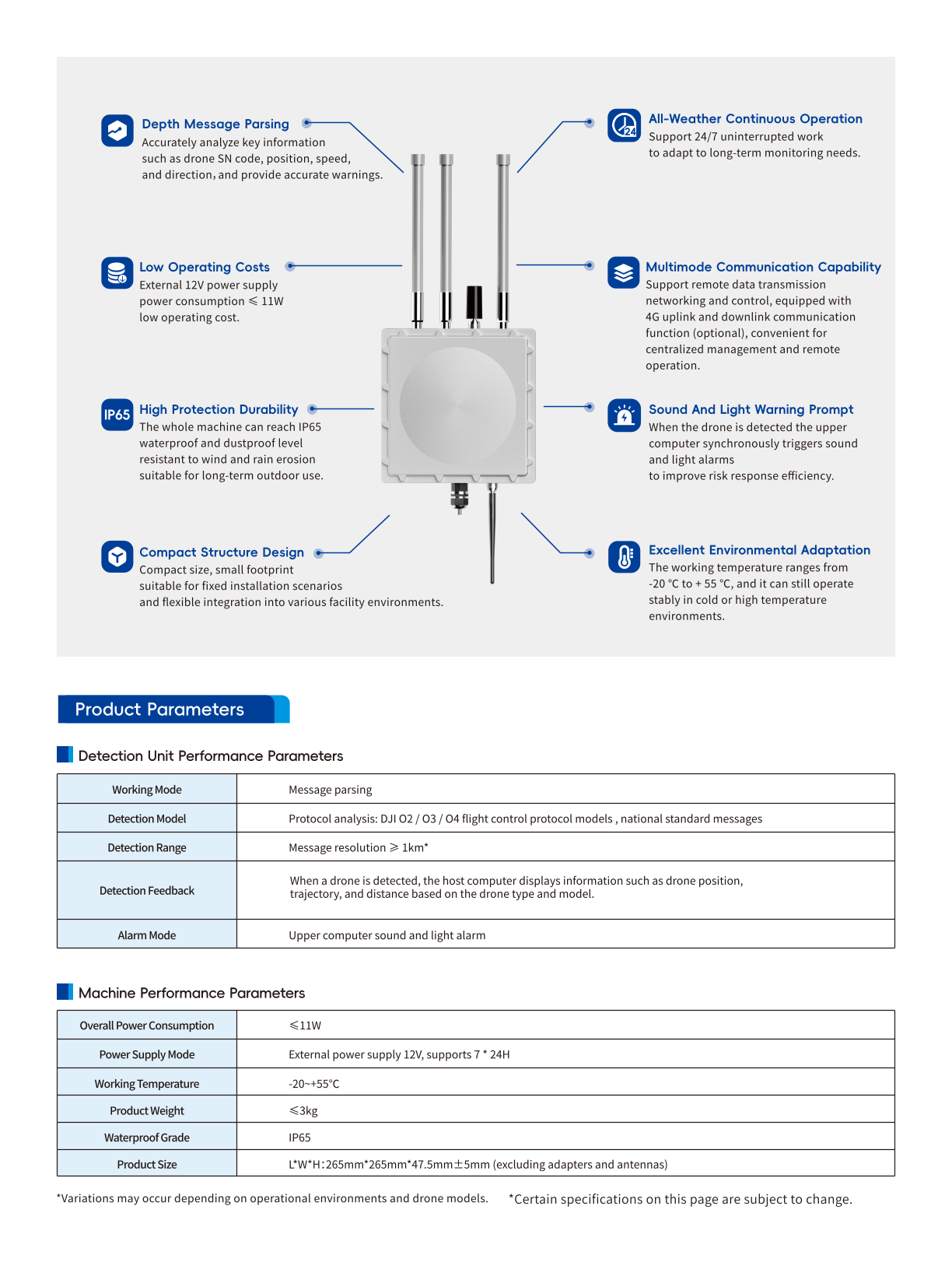

Detection Unit Performance Parameters

Working Mode: Message parsing

Detection Model: Protocol analysis: DJI O2 / O3 / O4 flight control protocol models , national standard messages

Detection Range: Message resolution ≥ 1km

Detection Feedback: When a drone is detected, the host computer displays information such as drone position,
trajectory, and distance based on the drone type and model.

Alarm Mode: Upper computer sound and light alarm



Machine Performance Parameters

Overall Power Consumption: ≤11 W
Power Supply Mode:External power supply 12 V, supports 7 * 24 H
Working Temperature:-20~+55℃
Product Weight:≤3 kg
Waterproof Grade:IP 65
L*W*H:265 mm*265 mm*47.5 mm±5 mm (excluding adapters and antennas)



Note: Variations may occur depending on operational environments and drone models. Certain specifications on this page are subject to change.

  • Product Details
  • Feature

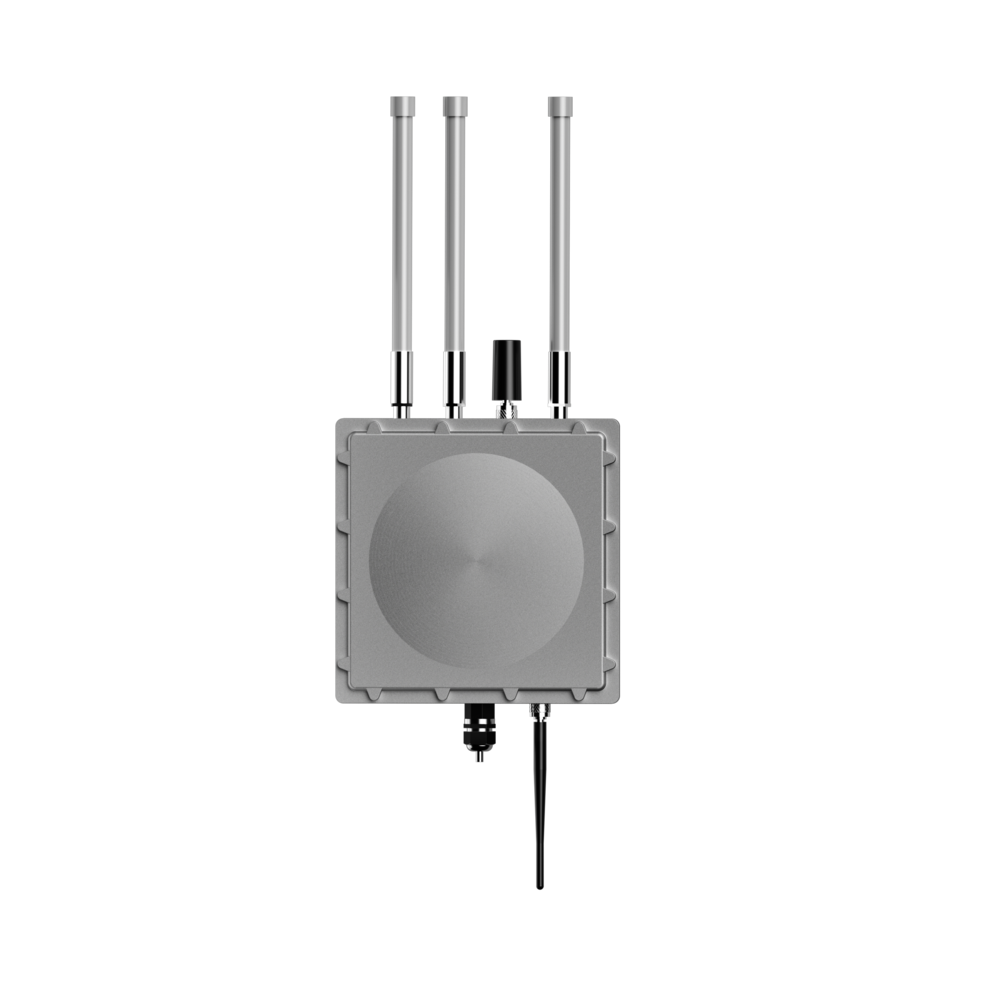

Low-altitude Sensing Base Station

The low-altitude sensing base station is a professional intelligent device for real-time monitoring and safety management in low-altitude environments. Utilizing high-performance antennas and multi-mode communication technology, it is compatible with mainstream drone protocols and can accurately track the real-time location, trajectory, and distance information of flying targets, building a dynamic sensing network for low-altitude safety management.

The product integrates stable performance and multi-functional design, featuring an IP 65-rated chassis that can withstand high and low temperatures and harsh weather, maintaining continuous operation 24/7 in environments ranging from -20℃ to 55℃. Its compact structure allows for flexible deployment in various scenarios such as buildings, parks, and border areas. Combined with long-range detection coverage and deep packet analysis technology, it effectively identifies unauthorized drone intrusions and triggers audible and visual alarms. Its low-power design, coupled with an external power supply solution, significantly reduces long-term maintenance costs, providing users with a management tool that is both highly efficient and economical.

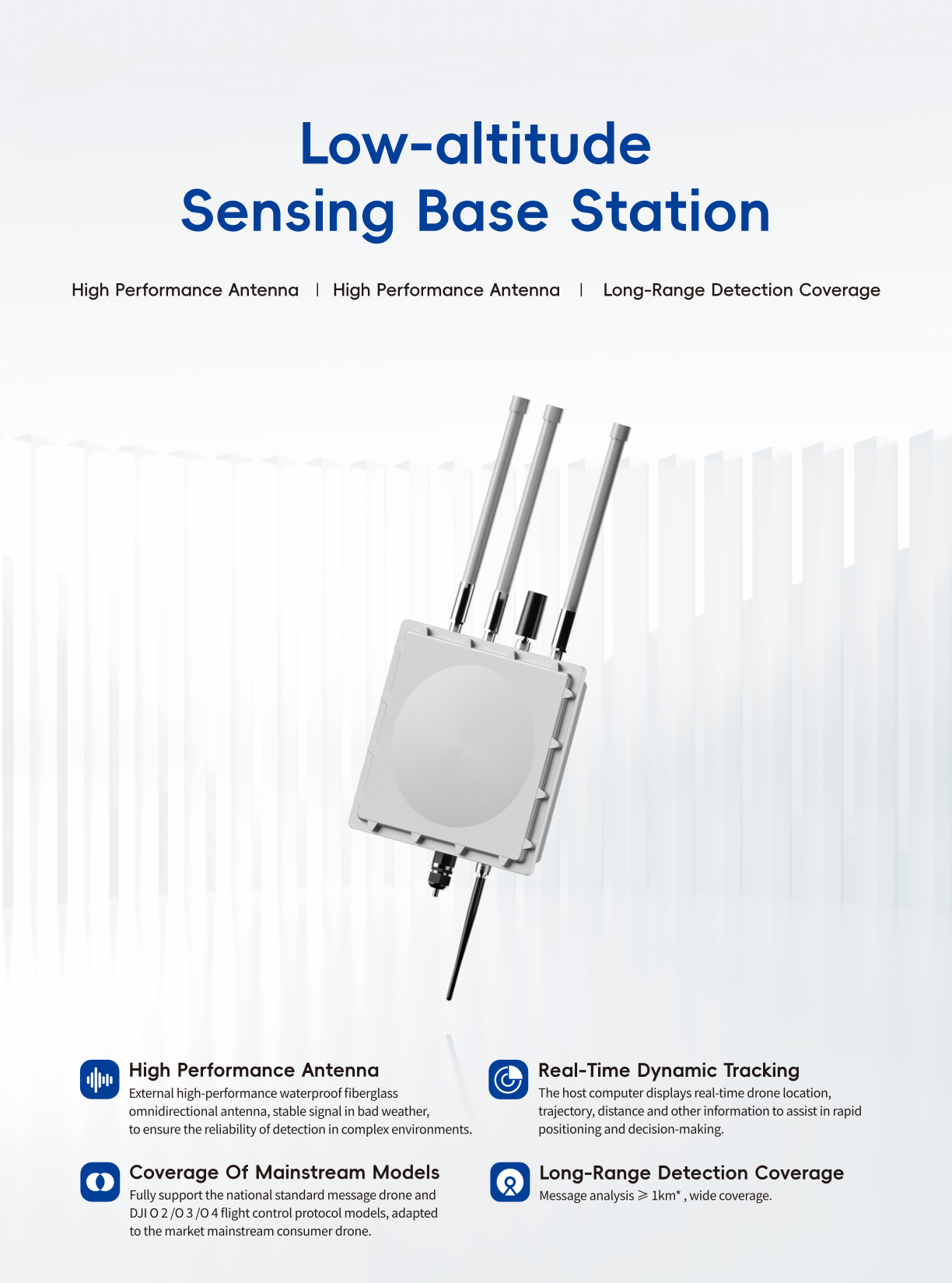

Advanced low-altitude sensing base station offering real-time detection and surveillance of low-level airspace. Cutting-edge low-altitude sensing base station designed for precise monitoring of low-flying objects like drones and UAVs.
